SUSPENDED CRADLE SYSTEM

Name: SUSPENDED CRADLE SYSTEM
Brand: BTI ELEVATORS
Price: 160000.0 INR
Availability: InStock

Price 160000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

SUSPENDED CRADLE SYSTEM Specification

Load Capacity
Up to 800 kg

Noise Level
80 dB

Car Dimension
Customized as per requirement

Voltage
220V / 380V

Inclination
Suitable for vertical applications

Usage
Facade cleaning, Building maintenance, Construction works

Type
Suspended Cradle System

Material
High-strength Aluminium Alloy / Steel

Drive Type
Electric Motor

Power Supply
Single-phase / Three-phase AC

Speed
9-11 m/min

Max. Lifting Height
100 m

Max. Lifting Weight
800 kg

Mechanism Type
Wire rope electric hoist

Working Temperature
-20C to +40C

Control Device
Pendant Control / Remote Control

Safety Device
Anti-tilt, Anti-fall, Overload protection, Emergency stop

Capacity
250 kg - 800 kg

Protection Class
IP55

Platform Surface Treatment
Hot Galvanized / Painted

Suspension Mechanism
Counter-weighted, Adjustable Outrigger

Installation
Easy assembling and disassembling

Brake Type
Electromagnetic

Frequency
50/60 Hz

Rated Power
1.5 kW 2.0 kW

Wire Rope Diameter
8.3 mm

Hoist Model
LTD6.3 / LTD8.0

Operating Platform Length
2 m 7.5 m (customizable)

Motor Insulation Class
F

SUSPENDED CRADLE SYSTEM Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
100 Months

Packaging Details
NA

Main Domestic Market
All India

Certifications
NA

About SUSPENDED CRADLE SYSTEM

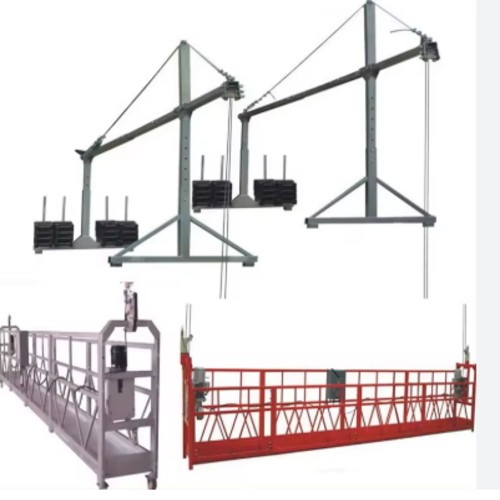

The Suspending Cradle System is a specialized lifting and access solution designed for safe work at heights, especially for building maintenance, facade cleaning, and construction projects. It features a sturdy platform suspended by strong ropes or cables, allowing workers to move vertically along structures with stability and safety. Ideal for high-rise buildings, industrial structures, and construction sites, the system ensures efficient, secure, and flexible access to elevated work areas.

Customizable Platforms for Versatile Applications

Whether you are handling facade cleaning or building repairs, the Suspended Cradle System's adjustable platform length (2-7.5 m) and load capacity (250-800 kg) make it flexible for various vertical applications. Its adaptable design ensures a tailored solution for your project requirements, allowing for car dimension customization as needed.

Engineered for Safety & Efficiency

Equipped with an electromagnetic brake, anti-tilt and anti-fall devices, overload protection, and emergency stop, this system prioritizes worker safety. The hot-galvanized or painted finish and high-strength materials provide long-lasting durability, while the easy installation and intuitive controls streamline daily operations.

Reliable Performance in Challenging Conditions

With protection class IP55 and insulation class F, the Suspended Cradle System is built to withstand harsh weather and temperature fluctuations (-20C to +40C). Its electric drive offers stable speeds (9-11 m/min) with noise levels below 80 dB, ensuring efficient performance in demanding environments.

FAQ's of SUSPENDED CRADLE SYSTEM:

Q: How is the Suspended Cradle System installed and disassembled?

A: The system is designed for quick and simple assembly or disassembly. Its counter-weighted suspension and adjustable outriggers facilitate secure installation, while the modular structure allows for easy transportation and relocation between job sites without specialized tools.

Q: What safety features are included with this cradle system?

A: The Suspended Cradle System incorporates anti-tilt, anti-fall, overload protection devices, and an emergency stop, along with electromagnetic braking. These features work together to provide maximum operator safety during all stages of operation.

Q: When is this system most commonly used?

A: This system is ideal for facade cleaning, building maintenance, painting, and construction work-especially where access to vertical or elevated surfaces is required. Its versatility makes it suitable for both short-term and long-term projects.

Q: Can the platform and car dimensions be customized to specific project needs?

A: Yes, platform lengths ranging from 2 to 7.5 meters and car dimensions can be tailored according to your project's requirements. Customization ensures optimal fit and performance for different building profiles and site demands.

Q: Where can the Suspended Cradle System be used, and is it suitable for Indian conditions?

A: Designed for both indoor and outdoor applications, the system operates effectively in India's varied climates, thanks to its weather-resistant materials, IP55 protection, and working temperature range of -20C to +40C.

Q: What benefits does a hot galvanized or painted surface provide?

A: Hot galvanization and specialty paints protect the platform from corrosion, extending its lifespan and maintaining structural integrity even in harsh outdoor conditions, ensuring minimal maintenance.
